We here hereby describe the salient features as follows:
This is the highest capacity Battery charger in this category. Having outgoing current @20A ± 1A in one of the stages to allow FASTEST charging to the Battery
4 stage current & voltage control charging process not only protects the Battery from overheating but also ensures FULL charging in every charge
Wide input range allows it to work at it’s full capacity from 150 V to 265 V with frequency at 50 ± 3 Hz. It requires a minimum starting voltage @155 V AC.
The Charger is having total cut off after the charging process is completed. This feature protects the Battery from being overcharged.
Since overall charging duration is substantially reduced the customer is benefited with reduction of electric bill.
The efficiency is very high (>90%) compared to Transformer – Rectifier technology Battery chargers (70%-80%).
DC ripple is less than 1% for both Voltage & Current
Unique Weak Battery detection in case of one or multiple cell failure in the Battery bank.
The nly charger in this category with a Float/ Trickle charging facility with optional switch. Charging the battery once in two weeks at this mode following a normal charging will minimise the gap of SOC (STATE OF CHARGE) between cells and thus it helps to increase the life of the battery also.
Protections
• Input Under Voltage & Over Voltage.
• Mechanical Reverse Battery Protection.
• Auto stop in case of charger overheating due to ventilation or environment problem.
• Weak Battery indicator.
We here hereby describe the salient features as follows:
Specially designed charger to match the unique charging profile designed by Exide Industries Limited.
India’s first DOD (Depth of Discharge) based charging pattern induced in this special Charger.
Wide input range for working to match subcontinent power supply conditions. The charger can work at it’s full capacity from 150 V to 265 V with frequency at 50 ± 3 Hz. It requires a minimum starting voltage @155 V AC.
The Charger is having total cut off after the charging process is completed.
The efficiency is very high (>90%) compared to Transformer – Rectifier technology Battery chargers (70%-80%).
DC ripple is less than 1% for both Voltage & Current.
The only charger in this category with a Float/ Trickle charging facility with an optional switch. Charging the battery once in two weeks at this mode following a normal charging will minimise the gap of SOC (STATE OF CHARGE) between cells and thus it helps to increase the life of the battery also
Protections
• Input Under Voltage & Over Voltage.
• Mechanical Reverse Battery Protection.
• Auto stop in case of charger overheating due to ventilation or environment problem.
• Weak Battery indicator.
We here hereby describe the salient features as follows:
This is the highest capacity Battery charger in this category. Having outgoing current @15A ± 1A in one of the stages
3 stage current & voltage control charging process not only protects the Battery from overheating but also ensures FULL charging in every charge.
Wide input range for working to match subcontinent power supply conditions. The charger can work at it’s full capacity from 150 V to 265 V with frequency At 50 ± 3 Hz. It requires a minimum starting voltage @155 V AC.
The Charger is having total cut off after the charging process is completed. This feature protects the Battery from being overcharged.
The efficiency is very high ( >90%) compared to Transformer – Rectifier technology Battery chargers ( 70%-80%).
DC ripple is less than 1% for both Voltage & Current.
Unique Weak Battery detection in case of one or multiple cell failure in the Battery bank.
The only charger in this category with a Float/ Trickle charging facility with an optional switch. Charging the battery once in two weeks at this mode following a normal charging will minimise the gap of SOC (STATE OF CHARGE) between cells and thus it helps to increase the life of the battery also.
Protections
• Input Under Voltage & Over Voltage.
• Mechanical Reverse Battery Protection.
• Auto stop in case of charger overheating due to ventilation or environment problem.
• Weak Battery indicator.

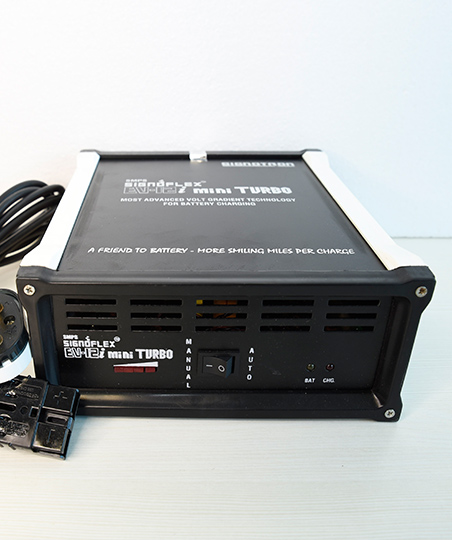

Features of the product are:
Most advance VOLT Gradient Technology
Protects the Battery from overheating
Wide input range for working to match subcontinent power supply conditions. The charger can work at full capacity from 170 V to 265 V with frequency at 50 ± 3 Hz. It can even work at a lower voltage up to 130V with reduced charging capacity.
The Charger is having total cut off after the charging & thus protects the Battery from being overcharged.
The efficiency is very high >80%.
The Charger is having AUTOMATIC & MANUAL mode of charging. For deep discharged Battery Manual Mode Charging is effective to ensure complete charging.
Protections
• Input Under Voltage & Over Voltage.
• Mechanical Reverse Battery Protection.
• Charging stop at Automatic mode.
Features of the product are:
Suitable for 12V 100-150AH Batteries
Operators need to feed the Battery Capacity (AH) & Serial number only.
Charge – Discharge – Recharge sequence follows automatically
Charging @ 7A rate and Discharging @ 18A or 32A rate selected.
During discharging DC power is converted to AC power and fed to the Grid. No need to connect load.
Data collected in regular intervals are stored and can be downloaded through Bluetooth.Portable
