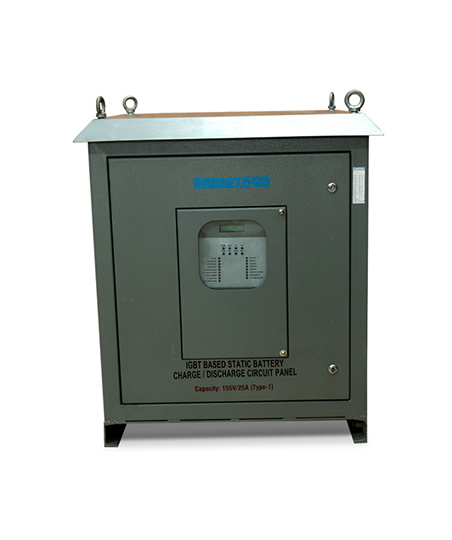

PARAMETERS |
RANGE |
---|---|
AC Input Range |
1 Phase (220V ± 10%) & 3 Phase (415V ± 15%), 50Hz, |
DC Output Range |
48V, 72V, 110V, 220V 10A - 80A DC |
Operational Combination |
FC, FCBC, FC & FCBC, DFCBC |
Efficiency |
> 90% |
DCV Output Ripple |
3% |
Input Current THD |
10-15% |
Power Factor |
0.80 or above for Single Phase |
Enclosure Protection |
IP 30, IP 42, IP 56 |
Regenerative Mode |
Available on demand |
Application Area |
Electrical Power Generating, Transmission & Distribution stations, Steel Plants, Captive Power Plants. |

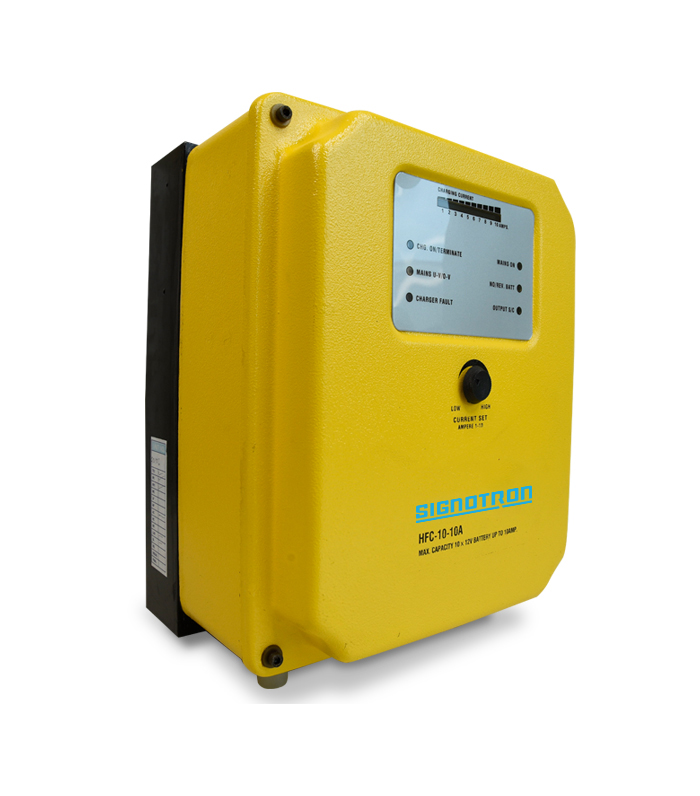

The SIGNOFLEX (HFC 10-10) is a universal battery charger for charging any number of batteries between 1 and 10 with a manual current setting of 1 to 10 Amps. It is a Constant Current (CC) Charger where the charging current does not reduce when the battery voltage goes up. Auto Cut-Off after the battery voltage reaches 16V, saves the batteries from overcharging.
Works at very wide Input AC power (265 – 160V)
Output Ripple < 3%%
Very high efficiency
Reverse battery Protected
Short Circuit protected
IP 65 Cabinet protection to handle Dust, Water, Humidity & adverse environmental condition.
Unique Charger Paralleling up to 10 units to increase the current if required.
Extra long life (10 years +) with 2 years wa
Small & Portable

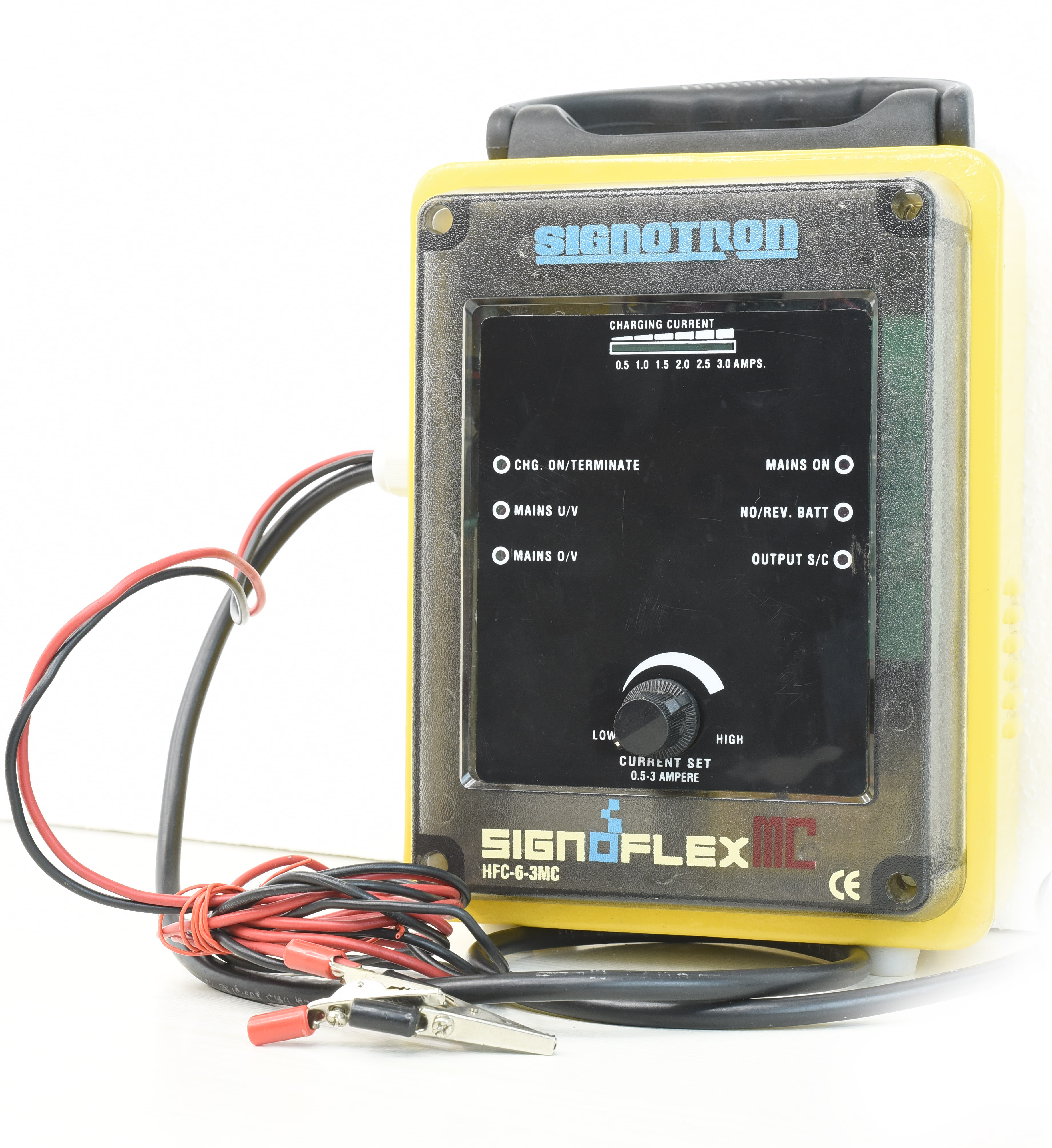

The SIGNOFLEX MC (HFC 6-3) is for small batteries like UPS Battery or Two Wheeler Battery. It can charge anything 1 to 6 units with a settable current between 0.5A to 3A. This charger is suitable for VRLA batteries. The Features:
Wide AC input (265V to 160V)
Automatic battery selection
Output Ripple < 3%
Reverse Battery Protection
Short Circuit protection
Auto charging termination at the end of charge.
Warranty 1 Year

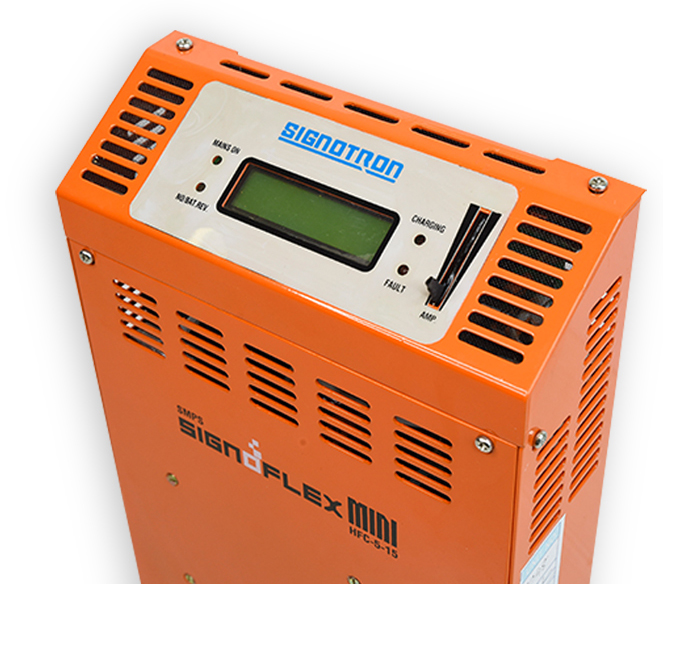

The SMPS SIGNOFLEX MINI (HFC 5-15) is a smaller version of SIGNOFLEX (HFC 10-10). Small & Portable, it can charge 1 – 5 units battery with settable current between 1 -15 Amps. The Features:
Wide input range (270 – 160V AC)
Automatic Battery selection
Output Ripple < 3%
Reverse battery Protection
Short Circuit Protection Battery
Auto charge termination at the end of charging
Wall mounting facility to reduce footprint area.
LCD Display for Current & Voltage reading.

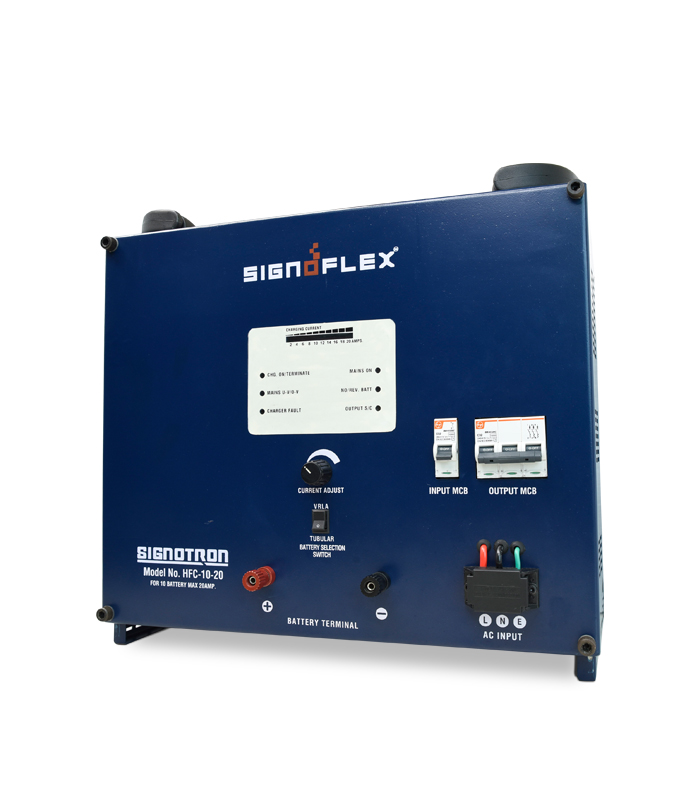

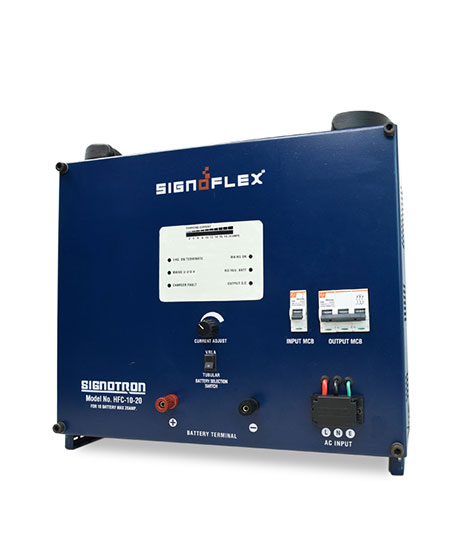

The SIGNOFLEX (HFC 10-20) is a universal battery charger for charging any numbers of batteries between 1 and 10 with a manual current setting of 2 to 20 Amps. It is a Constant Current (CC) Charger where the charging current does not drop even when the battery voltage goes up. An auto cut-off after battery Voltage reaches 16V saves the batteries from overcharging. This is a unique product that is suitable for both Flooded Type Battery as well as VRLA Batteries. The Features:
Working at very wide Input AC power (265 – 160V)
Suitable for both Flooded type Battery and VRLA Battery
Output Ripple < 3%
Reverse battery Protected
Short Circuit protected
Unique Charger Paralleling up to 10 units to increase the current if required.
Extra long life (10 years+).
Small & Portable

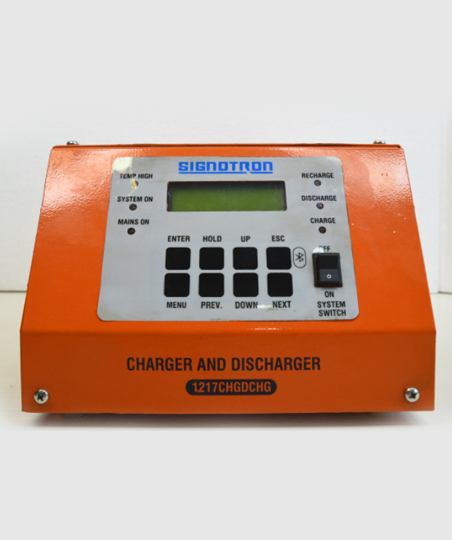

Features of the product are:
Suitable for 12V 100-150AH Batteries
Operators need to feed the Battery Capacity (AH) & Serial number only.
Charge – Discharge – Recharge sequence follows automatically
Charging @ 7A rate and Discharging @ 18A or 32A rate selected.
During discharging DC power is converted to AC power and fed to the Grid. No need to connect load.
Data collected in regular intervals are stored and can be downloaded through Bluetooth.
Portable.
